Container gantry cranes are vital equipment in port operations, facilitating the loading and unloading of shipping containers. These cranes come in different configurations, including Rail-Mounted Gantry (RMG) cranes, Rubber-Tyred Gantry (RTG) cranes, and Ship-to-Shore Gantry (STS) cranes. The assembly and disassembly of container gantry cranes are complex processes that require careful planning, precise execution, and adherence to safety protocols. Understanding these processes is crucial for ensuring smooth crane operations and minimizing downtime.
What is a Container Gantry Crane?
Container gantry cranes are large, mobile cranes designed specifically for handling shipping containers. They are typically installed at ports, terminals, or container yards to move heavy containers between ships and land transport. These cranes have a high lifting capacity and a wide span to accommodate container sizes and heavy loads. The assembly and disassembly of these cranes are essential tasks that directly impact the installation, maintenance, and relocation of container gantry crane systems.
Types of Container Gantry Cranes
Before delving into the assembly and disassembly processes, it is important to understand the different types of container gantry cranes commonly used in port operations:
Rail-Mounted Gantry Cranes (RMGs): These cranes are mounted on fixed rails and are used for stacking and moving containers in container yards and terminal areas.

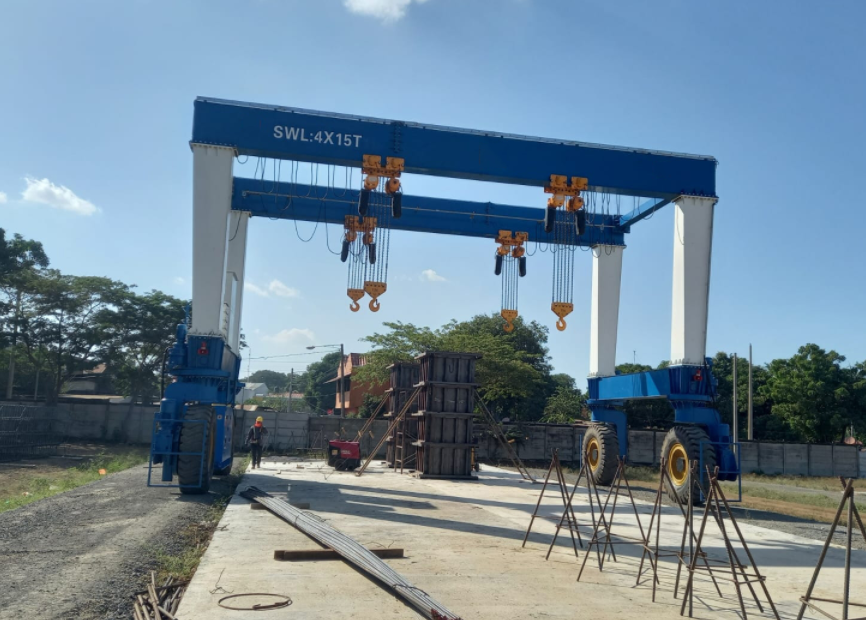

Rubber-Tyred Gantry Cranes (RTGs): RTGs are similar to RMGs but have rubber tires for mobility, allowing them to move across the yard without fixed tracks.
Ship-to-Shore Gantry Cranes (STS): These cranes are used for loading and unloading containers from ships at the port. They are mounted on rails along the quay and have a high lifting capacity to handle large containers.
Each crane type has its specific requirements for assembly and disassembly, but the core processes share many similarities.
The Container Gantry Crane Assembly Process
The assembly process of container gantry cranes involves multiple stages, from preparation and site selection to the actual construction of the crane. Proper planning and coordination are essential to ensure smooth execution and avoid costly delays.
1. Pre-Assembly Preparations
The first step in the assembly process is the preparation of the site. This involves clearing the area, preparing the foundation, and ensuring that all the necessary materials and tools are available. The foundation must be able to support the heavy loads imposed by the crane during operation.
Site Preparation: The installation site must be carefully selected, considering factors such as ground stability, proximity to shipping routes, and space for the crane's movement.
Foundation Construction: The foundation should be strong enough to bear the load of the crane. For RMG cranes, a rail foundation is required, whereas for RTGs, the surface should be flat and stable.
Material Procurement: The crane components, such as the gantry structure, lifting mechanisms, electrical systems, and control panels, need to be delivered to the site before assembly begins.
2. Assembly of the Gantry Frame
The gantry frame is the main structure of the crane, providing support for the lifting mechanism and movement system. This process involves the following steps:
Positioning the Base: The base of the gantry is positioned on the prepared foundation. For rail gantry cranes, this includes the installation of the rail tracks.
Assembling the Uprights: The vertical supports or uprights are connected to the base to form the crane's framework. These supports provide the necessary height for lifting containers.
Connecting the Crossbeam: The crossbeam, which holds the spreader (the part of the crane that lifts containers), is mounted between the uprights. This beam must be properly aligned to ensure smooth operation.
3. Installing the Hoisting Mechanism
The hoisting mechanism, including the trolley, hoist, and spreader, is installed next. This mechanism is responsible for lifting and lowering the containers. The assembly steps include:
Trolley Installation: The trolley runs along the gantry and holds the hoist, which moves horizontally to lift and move containers.
Hoist Installation: The hoist, which typically consists of a motor, drum, and lifting cables, is attached to the trolley.
Spreader Installation: The spreader, which is the part that connects to the containers, is mounted to the hoist. The spreader can be fixed or adjustable depending on the type of crane.
4. Electrical and Control System Installation
Once the mechanical components are in place, the crane's electrical and control systems are installed. This involves:
Wiring the Electrical Components: The crane’s electrical system includes motors, power supply lines, and control panels, all of which must be wired according to the crane's specifications.
Control System Calibration: The crane’s control system, which manages all movements and operations, is calibrated to ensure smooth and precise control. This step may involve testing the system and making adjustments to ensure that it meets safety standards.
5. Testing and Commissioning
Once the crane is assembled, the final step is testing. This is a critical part of the assembly process to ensure that the crane operates safely and efficiently.
Load Testing: The crane is tested by lifting loads that simulate container weights. This is done to verify that the crane’s lifting capacity meets specifications.
Functionality Testing: The crane’s movements, including hoisting, lowering, and horizontal movements, are tested to ensure smooth operation.
Safety Checks: Safety features such as emergency stop buttons, overload protection, and anti-sway systems are checked.
The Container Gantry Crane Disassembly Process
The disassembly process is just as important as assembly, especially when cranes need to be relocated, upgraded, or decommissioned. This process involves dismantling the crane components in a safe and organized manner.
1. Site Preparation for Disassembly
Before disassembly begins, the crane should be parked in a safe location, with all power sources turned off. The area must be cleared of any obstacles, and a thorough inspection should be performed to ensure that no components are damaged or under strain.
2. Dismantling the Components
The disassembly process starts with the removal of the hoisting mechanism. This includes disconnecting the spreader, hoist, and trolley from the gantry. Following this, the gantry frame, crossbeam, and uprights are carefully dismantled.
Lifting and Removing the Spreader: The spreader is detached from the hoist mechanism and safely lowered.
Hoist and Trolley Removal: The hoist and trolley are carefully disassembled, with attention paid to disconnecting electrical wiring and other connections.
Frame Dismantling: The gantry frame is taken apart, starting with the crossbeam, followed by the uprights. All bolts, welds, and connections are carefully loosened.
3. Packing and Transporting Components
Once the crane components are disassembled, they are packed and prepared for transportation. This involves:
Packing the Components: Each component is carefully packed to prevent damage during transportation.
Transporting the Components: The components are loaded onto trucks, ships, or trains for relocation or storage.
4. Final Inspection
After disassembly, a final inspection is conducted to ensure that all components are in good condition. This step is essential for identifying any damage that may have occurred during the process.
Conclusion
The assembly and disassembly of container gantry cranes are complex processes that require skilled personnel, precise planning, and careful execution. These cranes play a vital role in modern port operations, and their installation or relocation can have a significant impact on the overall efficiency of port and terminal operations. By understanding the steps involved in these processes, stakeholders can ensure that crane assembly and disassembly are conducted safely, efficiently, and in compliance with industry standards.
